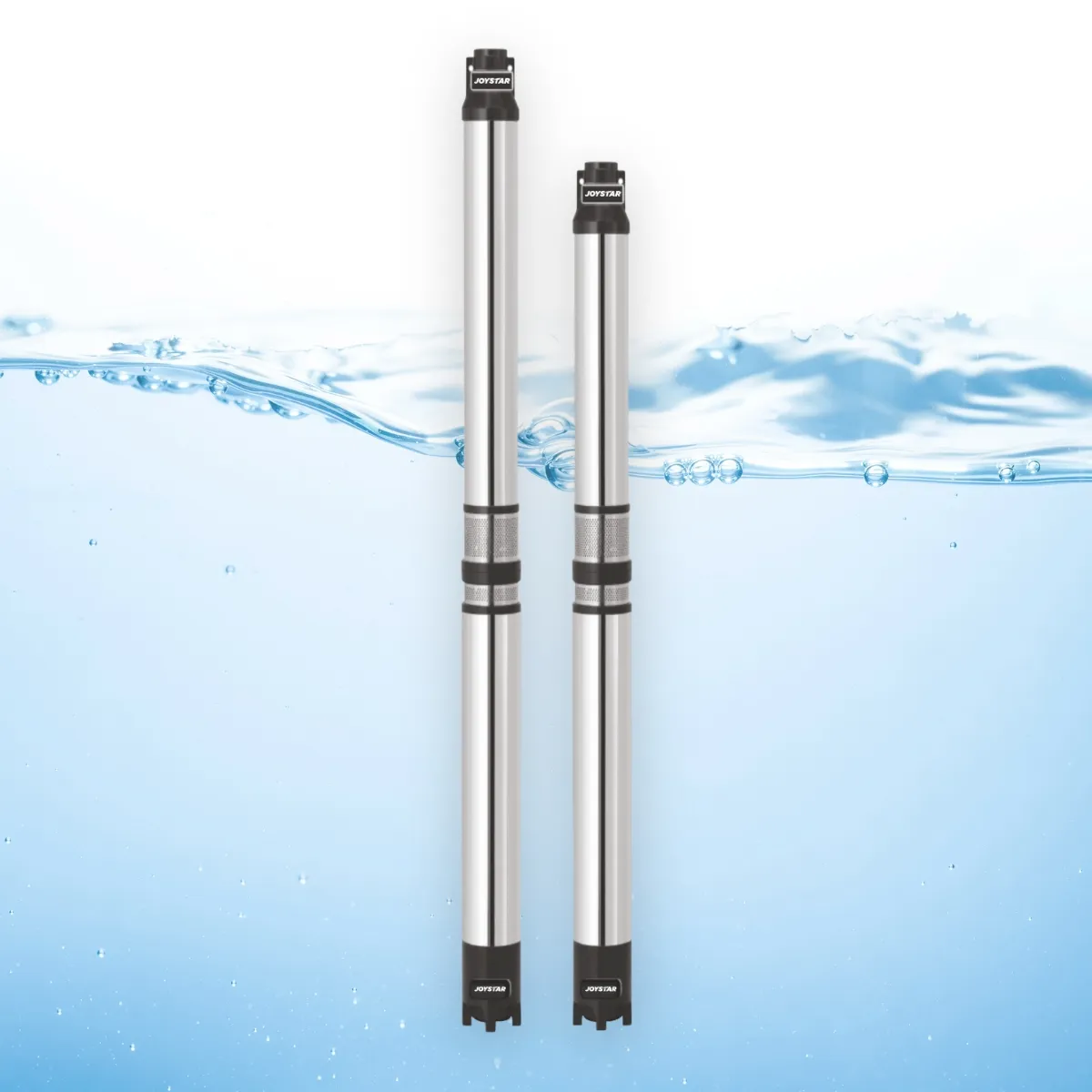

V3 Borewell Submersible Pump – 3 Inch Submersible Pump India
Joystar V3 Borewell Submersible Pump is specially designed for 3 inch borewell applications where space is limited. This submersible pump delivers efficient water lifting performance, low power consumption and long service life for domestic and agricultural use.
Manufactured using high-quality stainless steel and precision-engineered components, this V3 submersible pump ensures smooth operation, durability and reliable performance even under challenging conditions.
| Material of Construction | |
|---|---|
| Bowl | GF 30 Noryl |
| Impeller | GF 30 Noryl |
| Motor & Pump Body | Stainless Steel 304 |
| Motor & Pump Shaft | Stainless Steel 410 |
| Stator | CRNO |
| Rotor | EC Grade Copper |
| Winding | Polyester Insulated EC Grade Copper |
| Thrust Bearing | Carbon V/S Self Align S.S. Segments |
| Journal Bushing | LTB-4 |
| Mechanical Seal | Nitrile Rubber |
| Housing, Connection, Base Suction & Outlet | FG 220 Grade Cast Iron |
| Technical Data | |
| HP Range | 0.5 HP To 1.5 HP (Single Phase) |
| Head Range Upto | 115 MTR / 375 FT |
| Flow Rate Upto | 110 LPM |
| Operating Voltage Range | 190–230V, 50Hz Single Phase |
| Rated Voltage / Frequency | 220V +6% & -15% / 50Hz Single Phase |
| Maximum Liquid Temperature | 33°C |
