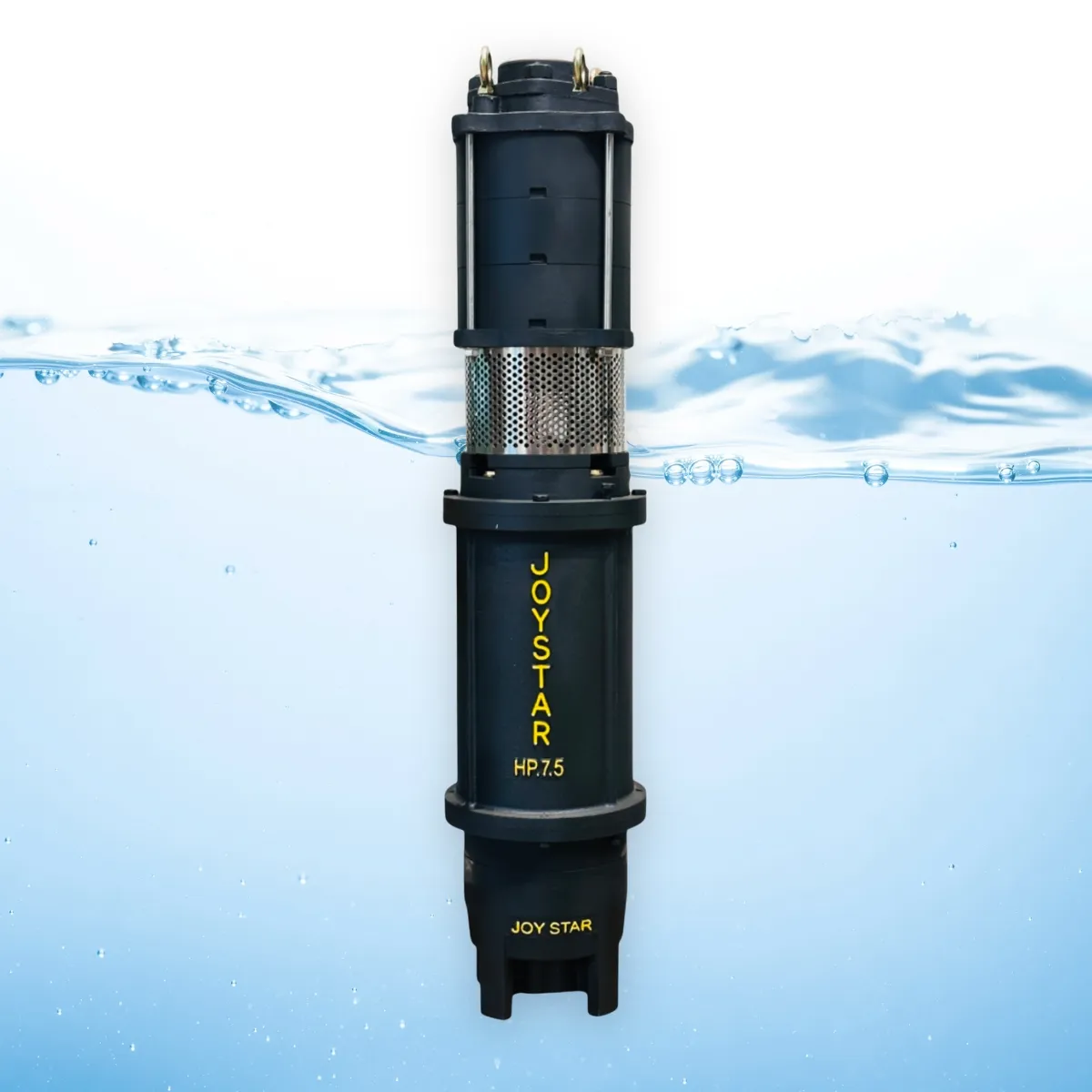

V9 CI Vertical Openwell Pump – High Head Water Pump
Joystar V9 CI Vertical Openwell Pump is designed for efficient water lifting from open wells, sumps and water storage systems where vertical installation is required. This pump is ideal for agricultural irrigation, industrial water supply and water circulation applications.
Constructed with heavy-duty cast iron components and precision-engineered parts, this vertical openwell pump offers high strength, durability and long service life. Its design ensures smooth operation, stable performance and efficient water discharge even under continuous usage.
| Material of Construction | |
|---|---|
| Bowl | FG 260 Grade Cast Iron |
| Impeller | FG 220 Grade Cast Iron / S.S. 410 |
| Suction, Outlet, Housing & Base | FG 220 Grade Cast Iron |
| Motor Body | FG 220 Grade Cast Iron |
| Motor & Pump Shaft | S.S. 410 |
| Stator | CRNO |
| Rotor | EC Grade Copper |
| Winding | Polyester Insulated EC Grade Copper |
| Thrust Bearing | Carbon V/S Self Align S.S. Segments |
| Journal Bushing | LTB-4 |
| Mechanical Seal | Nitrile Rubber |
| Technical Data | |
| HP Range | HP 5.0 To HP 20.0 |
| Head Range Upto | 185 MTR. / 606 FT. |
| Flow Rate Upto | 1200 LPM |
| Operating Voltage Range | 350–440V, 50 HZ Three Phase |
| Rated Voltage / Frequency | 415V +6% & -15% / 50 HZ Three Phase |
| Maximum Liquid Temperature | 33°C |
| Method Of Starting For T.P. | HP 5.0 To HP 7.5 DOL HP 10.0 To HP 20.0 STAR DELTA |
