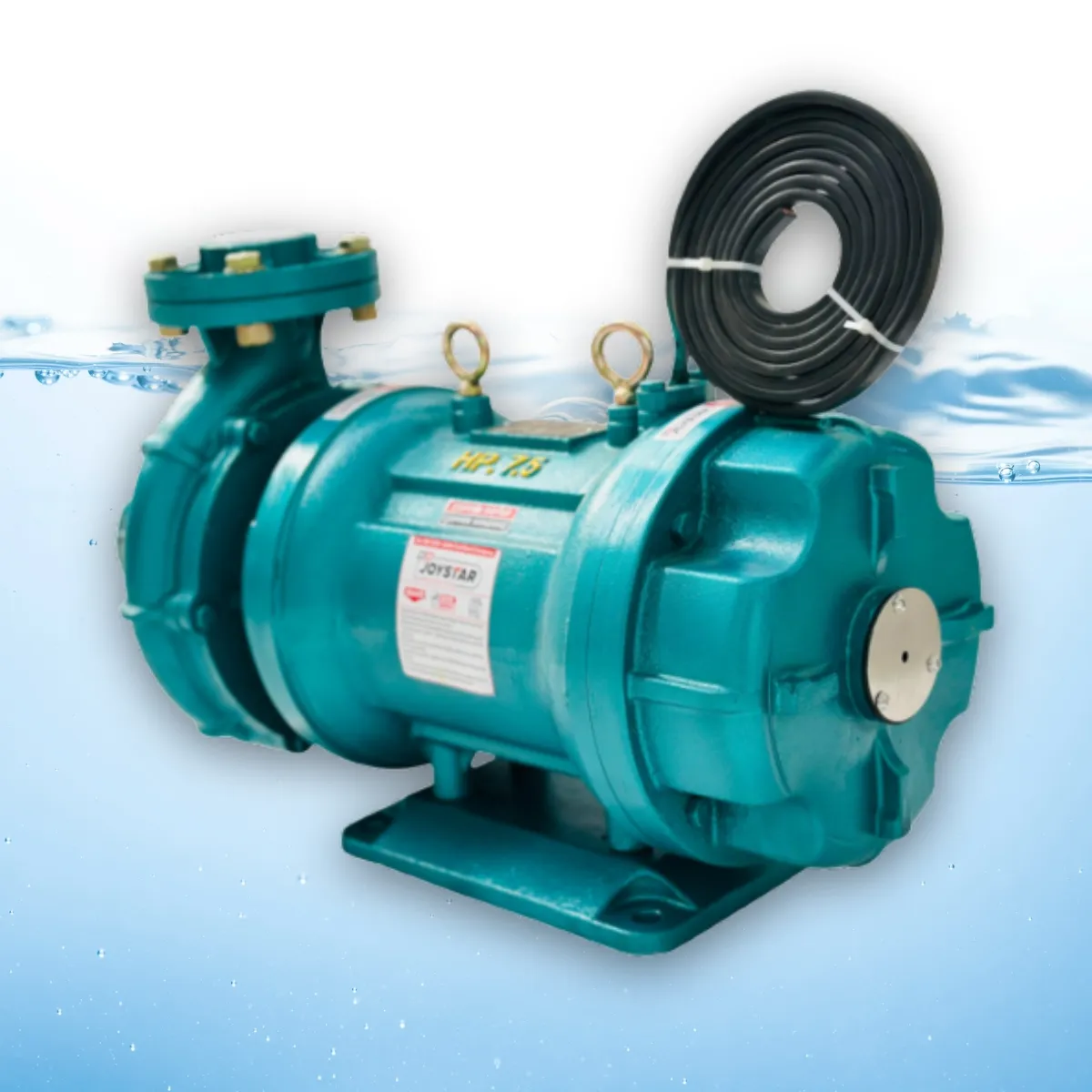

V9 CI Horizontal Openwell Pump – High Capacity Water Pump
Joystar V9 CI Horizontal Openwell Pump is designed for high-capacity water transfer applications requiring large discharge and reliable performance. This horizontal openwell pump is ideal for agriculture irrigation, canal water transfer and industrial water systems.
Constructed with heavy-duty cast iron components and stainless steel shaft, this pump offers excellent strength, durability and resistance to wear. Its robust design ensures smooth operation, low vibration and stable performance even under continuous usage.
With high flow capacity and strong head performance, this pump efficiently handles large volumes of water. It is suitable for farmers, irrigation systems and industrial applications requiring consistent and powerful water delivery.
| Material of Construction | |
|---|---|
| Motor Body | FG 220 Grade Cast Iron |
| Motor & Pump Shaft | Stainless Steel 410 |
| Stator | CRNO |
| Rotor | EC Grade Copper |
| Winding | Polyester Insulated EC Grade Copper |
| Thrust Bearing | Carbon V/S Self Align S.S. Segments |
| Journal Bushing | LTB-4 |
| Mechanical Seal | Nitrile Rubber |
| Casing, Housing, Impeller, Bracket | FG 220 Grade Cast Iron |
| Impeller | FG 220 Grade Cast Iron |
| Technical Data | |
| HP Range | HP 5.0 To HP 20.0 |
| Head Range Upto | 95 MTR. / 310 FT. |
| Flow Rate Upto | 3300 LPM |
| Type Of Duty | S1 (Continuous) |
| Operating Voltage Range | 190–230V 50 HZ Single Phase 350–440V 50 HZ Three Phase |
| Rated Voltage / Frequency | 220V + 6% & 15% 50 HZ Single Phase 415V + 6% & 15% 50 HZ Three Phase |
| Maximum Liquid Temperature | 33°C |
Also explore our V7 Mini Openwell Pump, Horizontal Openwell Pumps and Submersible Pumps.
