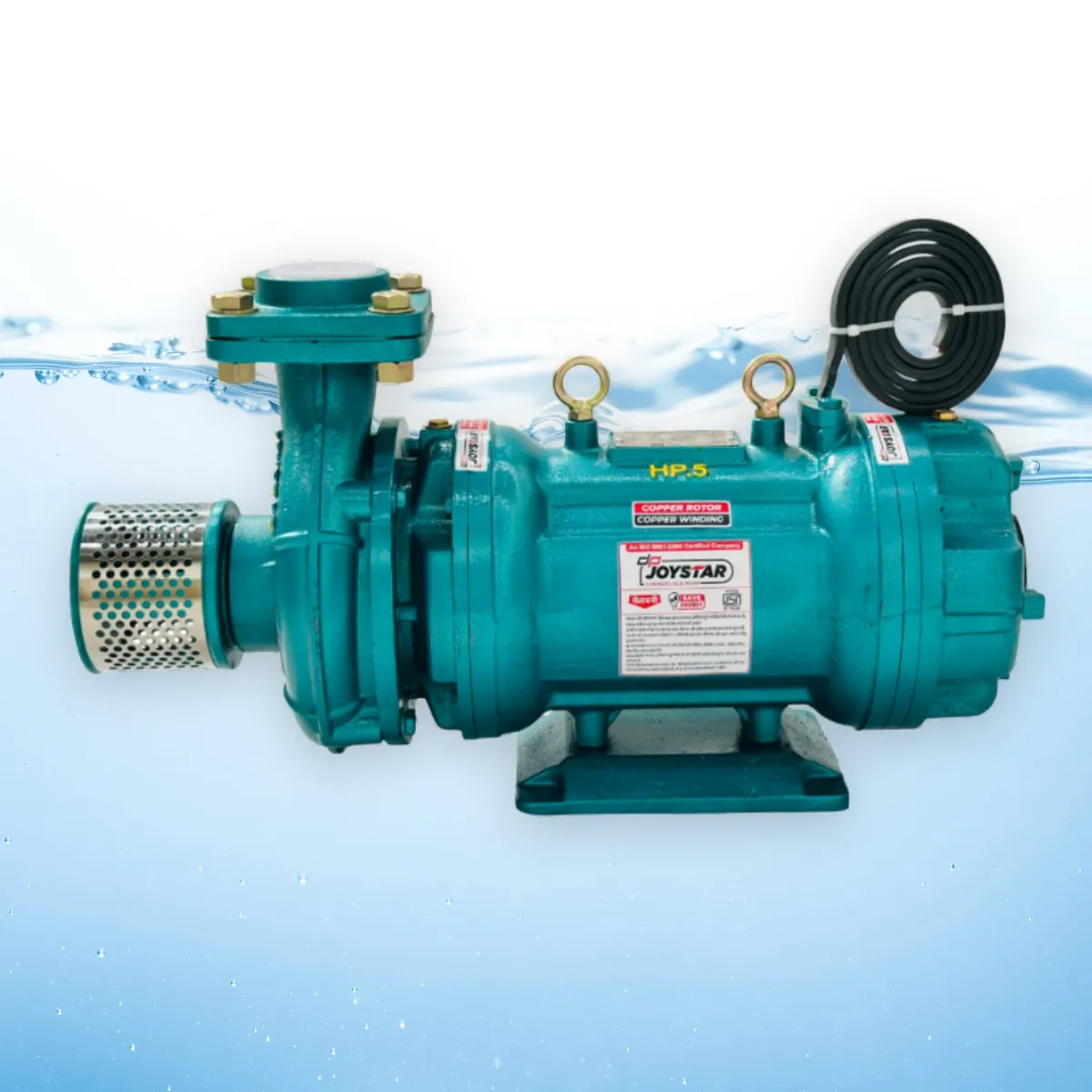

V7 CI Mini Horizontal Openwell Pump – High Discharge Water Pump
Joystar V7 CI Mini Horizontal Openwell Pump is designed for high discharge water applications in open wells, canals and storage tanks. This horizontal openwell pump is ideal for agriculture irrigation, domestic water supply and light industrial use.
Constructed with cast iron components and stainless steel shaft, this pump offers strong build quality, durability and resistance to wear. Its efficient design ensures smooth water flow, low vibration and reliable performance even under continuous operation.
With high flow capacity and energy-efficient motor performance, this openwell pump delivers excellent output while reducing power consumption. It is a dependable solution for farmers, residential users and industrial applications.
| Material of Construction | |
|---|---|
| Motor Body | FG 220 Grade Cast Iron |
| Motor Shaft | Stainless Steel 410 |
| Stator | CRNO |
| Rotor | EC Grade Copper |
| Winding | Polyester Insulated EC Grade Copper |
| Thrust Bearing | Carbon V/S Self Align S.S. Segments |
| Journal Bushing | LTB-4 |
| Mechanical Seal | Nitrile Rubber |
| Casing, Housing, Impeller, Bracket | FG 260 Grade Cast Iron |
| Technical Data | |
| HP Range | HP 3.0 To HP 5.0 |
| Head Range Upto | 42 MTR. / 135 FT. |
| Flow Rate Upto | 780 LPM |
| Operating Voltage Range | 190–230V, 50 HZ Single Phase 350–440V, 50 HZ Three Phase |
| Rated Voltage / Frequency | 220V +6% & -15% / 50 HZ Single Phase 415V +6% & -15% / 50 HZ Three Phase |
| Maximum Liquid Temperature | 33°C |
