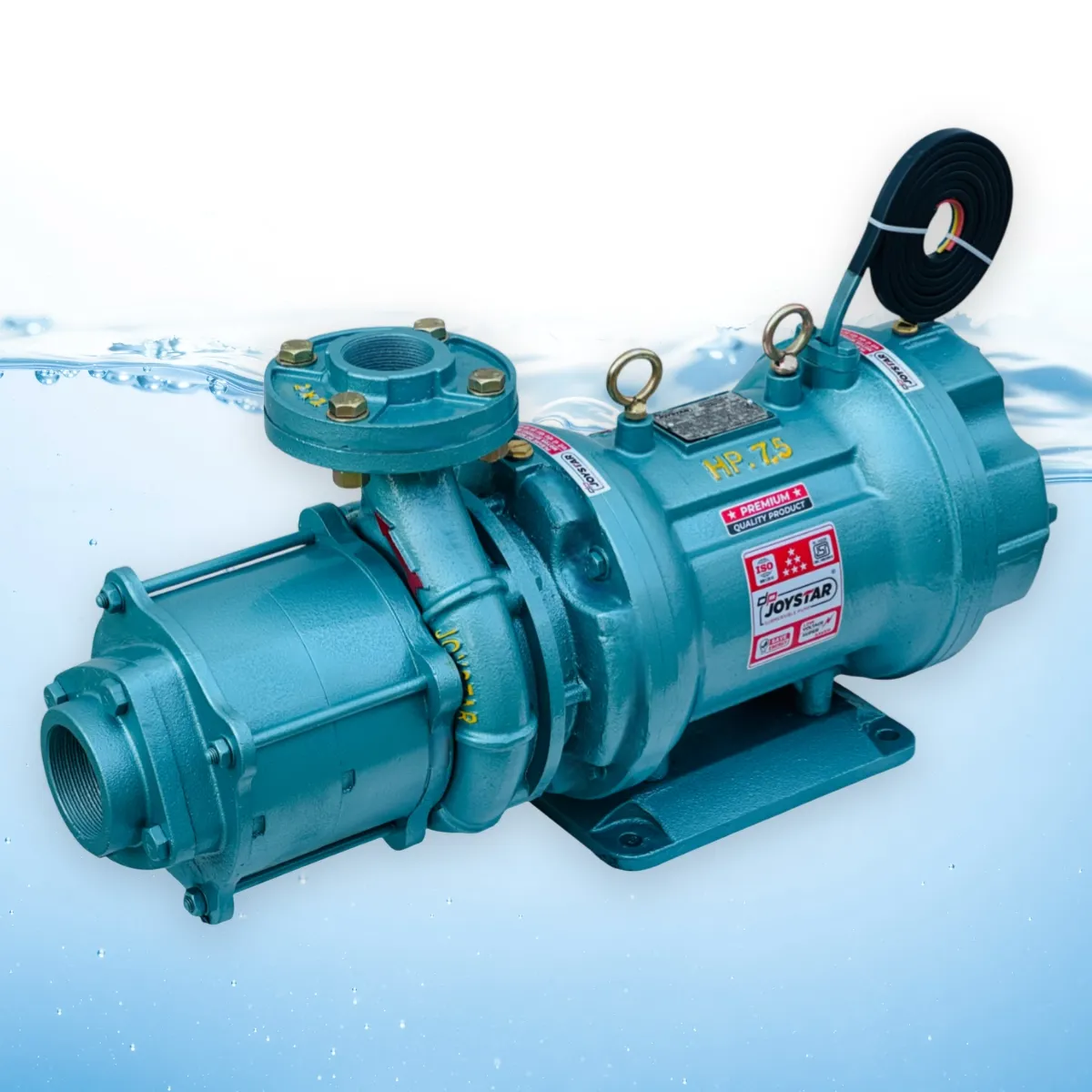

V9 CI Multi Stage Horizontal Openwell Pump – High Pressure Water Pump
Joystar V9 CI Multi Stage Horizontal Openwell Pump is designed for high pressure water transfer applications requiring both high head and reliable discharge. This openwell pump is ideal for sprinkler irrigation, industrial water supply and long-distance water transfer systems.
The multi-stage pump design increases water pressure across multiple impellers, ensuring efficient performance and consistent output. Constructed with heavy-duty cast iron and precision-engineered components, this pump offers durability, strength and long operational life.
With stable performance, energy efficiency and low maintenance requirements, this pump is suitable for agricultural, industrial and large-scale water distribution systems where high pressure is essential.
| Material of Construction | |
|---|---|
| Motor Body | FG 220 Grade Cast Iron |
| Motor & Pump Shaft | Stainless Steel 410 |
| Stator | CRNO |
| Rotor | EC Grade Copper |
| Winding | Polyester Insulated EC Grade Copper |
| Thrust Bearing | Carbon V/S Self Align S.S. Segments |
| Journal Bushing | LTB-4 |
| Mechanical Seal | Nitrile Rubber |
| Casing, Housing, Impeller, Bracket | FG 220 Grade Cast Iron |
| Impeller | FG 220 Grade Cast Iron |
| Technical Data | |
| HP Range | HP 5.0 To HP 10.0 |
| Head Range Upto | 120 MTR. / 390 FT. |
| Flow Rate Upto | 1020 LPM |
| Type Of Duty | S1 (Continuous) |
| Operating Voltage Range | 350–440V 50 HZ Three Phase |
| Rated Voltage / Frequency | 415V + 6% & 15% 50 HZ Three Phase |
| Maximum Liquid Temperature | 33°C |
